News WS700 Directional poppet valve cartridge
[Translate to EN:]

News: Directional poppet valve cartridge WS700

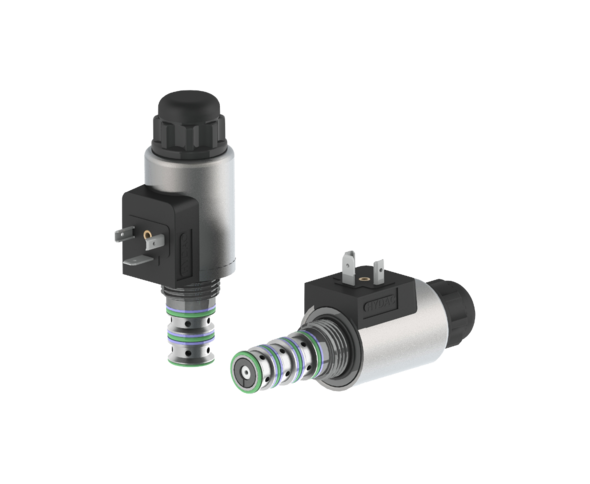

The new BIERI directional poppet valve WS700 from the size NG6 series is the first available direct operated and seat tight cartridge valve in the market for pressures up to 700 bar. The bidirectional flow allows all ports to be loaded with max. pressure. The use of this slim cartridge valve offers increased space when designing compact and light-weighted control blocks and high pressure power units.



Features

  • Bidirectional flow in open shift position
  • Cartridge valve NG6, 700 bar, 25 l/min
  • Pressure compensated hardened and grinded
    design of cones, high magnetic force and strong
    return spring
  • 360° rotatable and exchangeable plug-in-coil
  • Zink-nickel coated coil

Advantages

  • 2/2 and 3/2 way functions, seat tight and flow in both directions
  • Safe and fast switching
  • High amount of cycles and long lifetime
  • Arbitrary position of solenoid coil
  • Replacement of coils without opening of
    the pressure tight spaces
  • Good corrosion resistance



Applications

  • Portable power units
  • Hydraulic tools
  • Hydraulic torque wrenches
  • Rescue tools
  • Small presses
  • Lifting and transport systems
  • Construction & Recycling



Technical data

  • Porting NG 6
  • p: 700 bar
  • Q: 25 l/min
  • U: 12, 24 VDC, 110, 230 VAC
