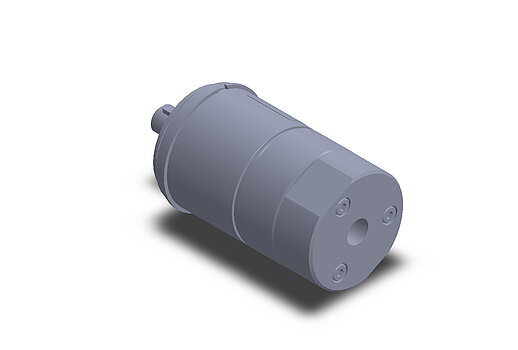

Micro axial piston pumps AKP103/105
Micro axial piston pumps from the AKP103/105 series are axial units that are suitable for use in rough environments and at high rotational speeds.
- Max. Operating pressure: 500 bar
- Max. Displacement: 0.3 cm³/rev
- Max. Rotational speed: 5000 min-1
Features
Permanent lubrication and cooling of bearings by the intake flow, modular pump system, valve-controlled on pressure and suction side
Benefits
Very high and constant efficiency across entire rotational speed and pressure range, low-noise, increased service life and reliability, even in harsh environments (high temperatures, strong vibrations) and confined spaces
Industries & Applications
Offshore, oil and gas industry, deep-sea research equipment – handling devices, hydraulics systems with small flow rates, small power packs
Mounting
Equipped with three or five pistons, valve-controlled on the pressure and the suction side (not usable as motor), wobble shaft with large-sized roller bearings, rotating swashplate
