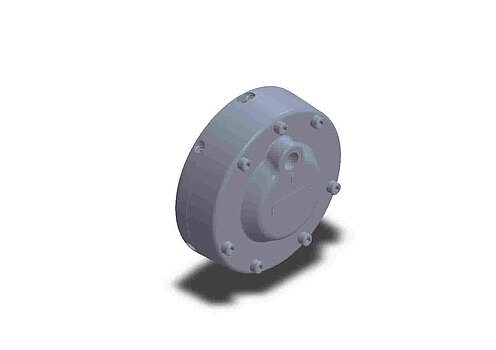

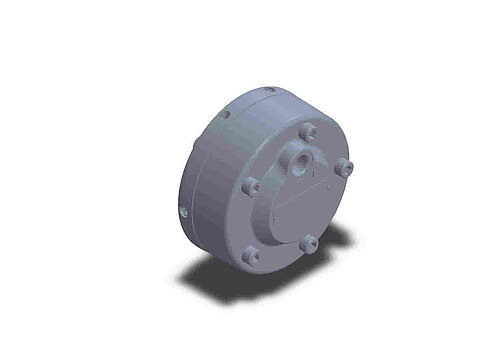

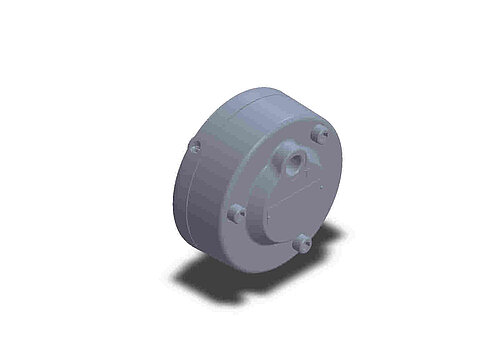

Radial piston pumps BRK701/702
Radial piston pumps from the BRK701/702 series are radial units that are suitable for use across a large drive speed range, with consistently high volumetric efficiency and with a wide range of media.
- Max. operating pressure: 700 bar
- Max. displacement: 8.14 cm³/rev.
- Max. drive speed: 2000 rpm
Features
Highly robust, valve-controlled, low piston clearance, minimised piston dead volume, coupled with the optimised valve design, modular pump system
Benefits
Unrivalled power density, broad range of different media, very good volumetric efficiency across large drive speed range, long service life, self-venting
Industries & Applications
Particularly suitable for the toughest applications and high continuous operating pressures up to 700 bar, machine tools, clamping devices, power units (e.g. for presses), test benches, accumulator charging systems, lifting and feed systems
Mounting
Radial piston pump with modular design, with valve-controlled pump elements, with 3, 5, 7 or 9 pump elements
