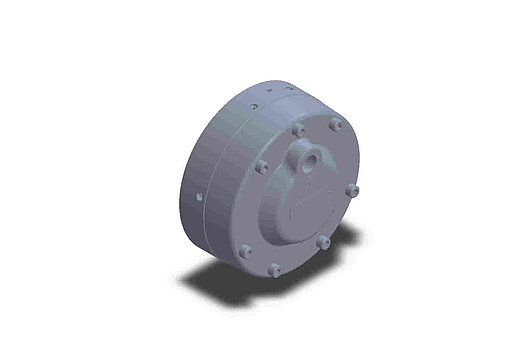

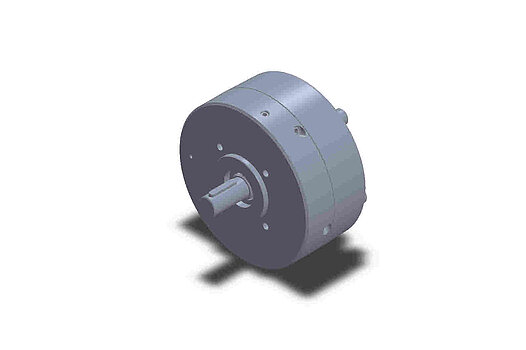

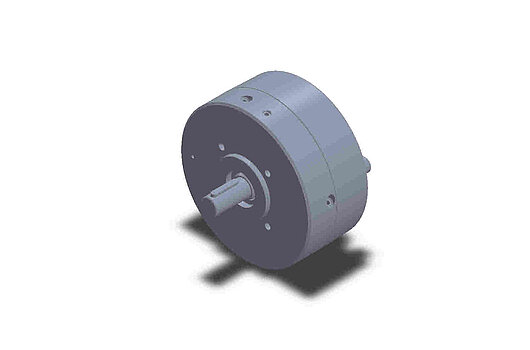

Radial piston pumps BRK1001/1002
Radial piston pumps from the BRK1001/1002 series are radial units that are suitable for the toughest applications and high continuous operation pressures of up to 1000 bar and use with a wide range of media.
Max. operating pressure: 1000 bar
Max. displacement: 3.56 cm³/rev.
Max. drive speed: 2000 rpm
Features
Highly robust, valve-controlled, low piston clearance, minimised piston dead volume, coupled with the optimised valve design, modular pump system
Benefits
Unrivalled power density, broad range of different media, very good volumetric efficiency across large drive speed range, long service life, self-venting
Industries & Applications
Particularly suitable for the toughest applications and high continuous operating pressures up to 1000 bar, machine tools, clamping devices, power units (e.g. for presses), test benches, accumulator charging systems, lifting and feed systems
Mounting
Radial piston pump with modular design, with valve-controlled pump elements, with 3, 5 or 7 pump elements
