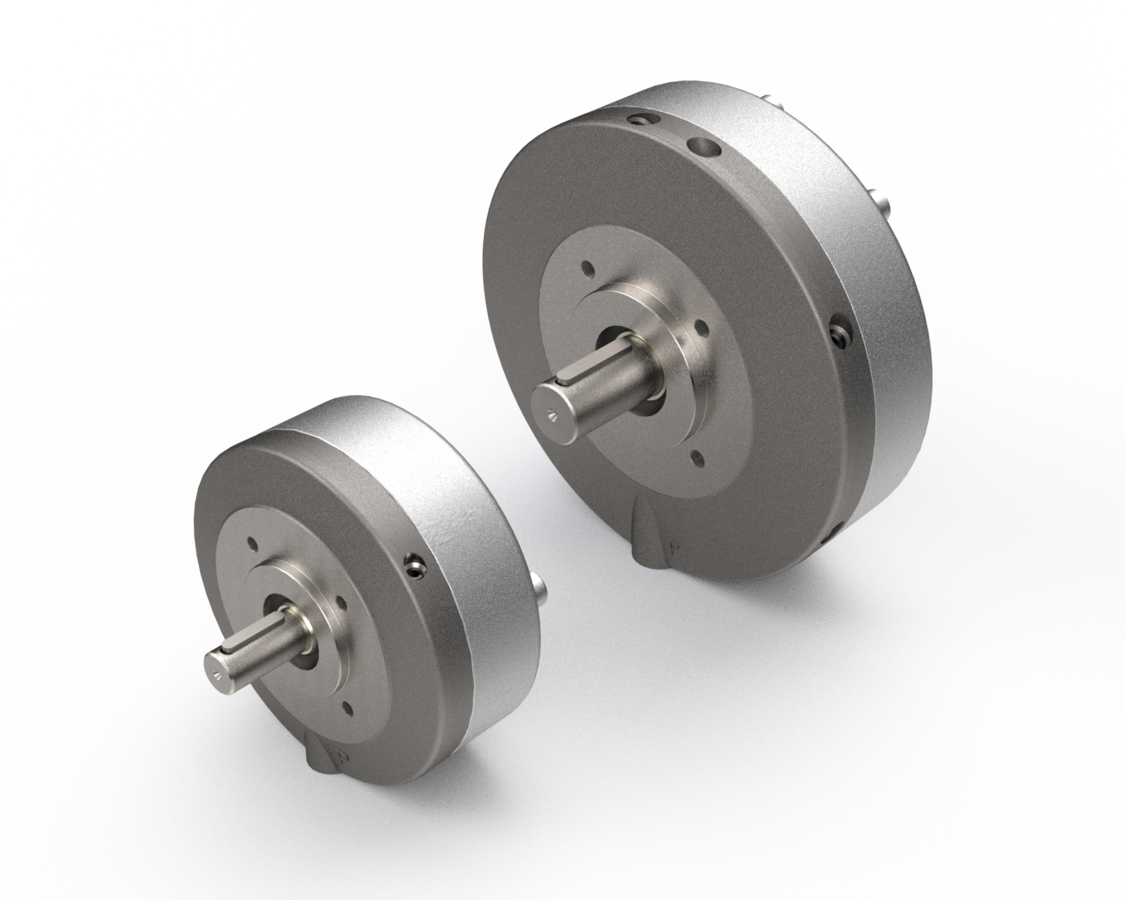

Special radial piston pumps SRK-ATEX

Operating pressure up to 700 bar
Displacement volume 0,24 up to 8,14 cm³/rev
Max. rotation speed: 1800 rpm

Features Advantages
Robust radial piston pump, valve controlled Very high volumetric efficiency on a wide speed range
Low piston clearance Self-venting
Bearings are designed for maximum constant pressure (700 bar) Low pulsation
Minimized dead volume of pistons, linked together with optimized
design of suction valves
Long operating lifetime
Modular pump system Suitable for operation with fluids with
reduced lubricating properties
  Ambient temperature up to -40°C

Applications

Design


Technical Data

Hydraulic fluid mineral oil according to DIN 51524 (other fluids on request)
Fluid temperature range -20 to 80°C
Ambient temperature range -20 to 40°C (-40°C on request)
Viscosity range 5 to 220 mm²/s
Max. operating pressure 700 bar
Operation pressure suction side -0.2 bar to 0.5 bar gauge pressure
Displacenement volume 0,24 to 8,14 cm³/rev
Filtration (recommendation) according to NAS 1638 class 6 resp. ISO/DIN 4406 17/15/12
Axial force onto driving shaft can't be taken up
Radial force onto driving shaft on request
Max. rotation speed 1800 min⁻¹
Direction of rotation Any
Suction height max. 500 mm
Weight see technical data sheet
Materials pressure flange: forged steel
driving shaft: steel
cover: diecast aluminium
