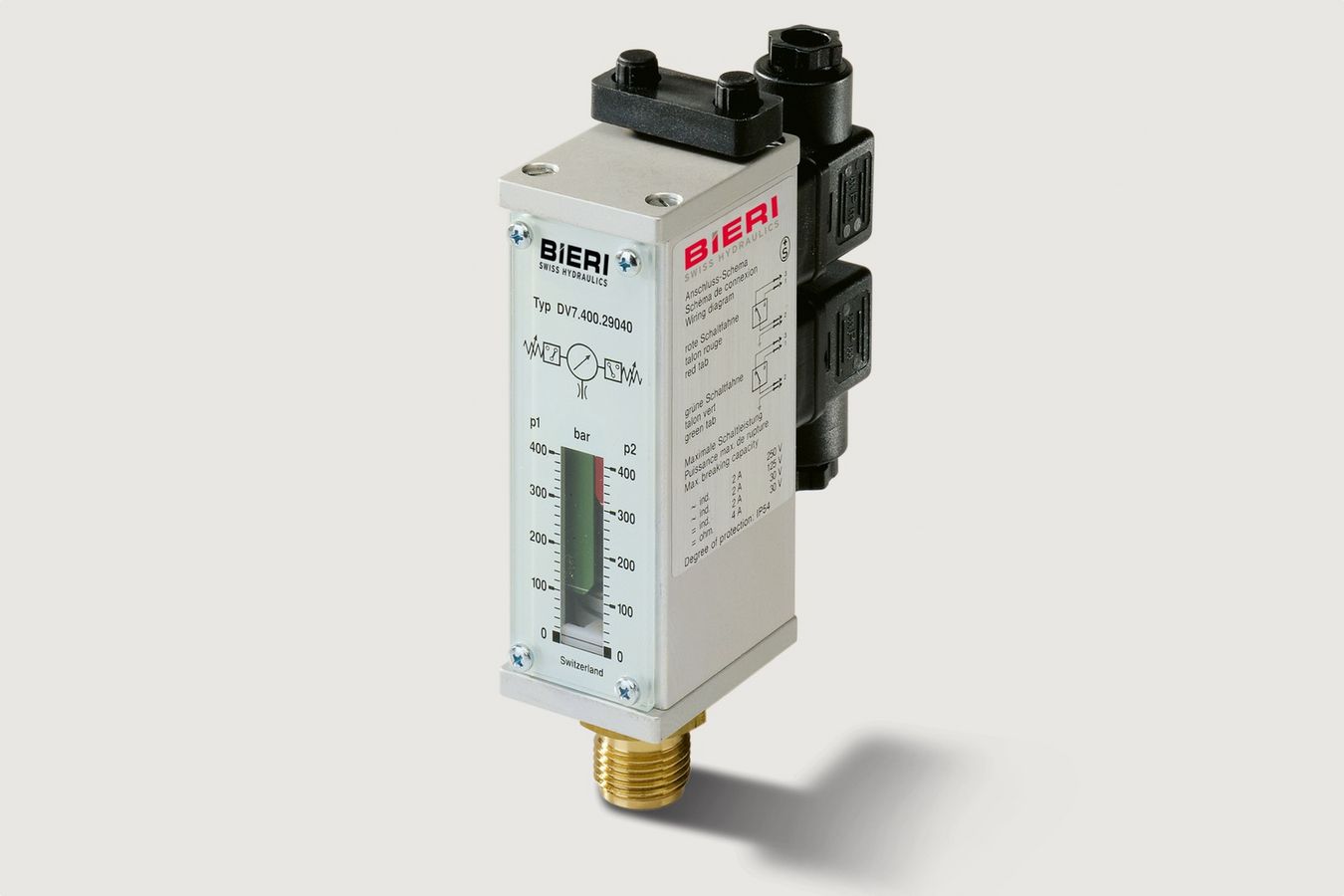

Pressure switches DV7.2
With two adjustable change-over switch
Easy and precise adjustable hydromechanical pressure switch based on the piston-spring principle. When the oil pressure rises to the set value, the built-in microswitch is actuated - when the pressure drops, the switch is released. 7 pressure ranges for optimum adaptation to any operating pressure.
Design
|
Advantages
|
---|
Robust hydromechanical principle
|
Easy adjustability
|
Seven different pressure ranges available
|
Compact construction guide
|
Switch-on and switch-off pressures can be set individually
|
Can be rotated 360° under pressure
|
Direct pressure display
|
High IP protection class
|
Very high operational safety
|
No power supply necessary
|
Any supply voltages
|
Insensitive to EMV
|
Appliance plug can be rotated by 3 x 90°
|
Insensitive to hydraulic overload
|
Adjustment of both switching points via adjusting screws
|
Long service life
|
Robust construction
|
|
Any mounting position
|
|
- Railway technology
- In power plants
Hydraulic fluid
|
Mineral oil according to DIN 51524(other media on request)
|
Fluid temperature range
|
-20 to 80 °C
|
Ambient temperature range
|
-30 to 50 °C
|
Viscosity range
|
5 bis 400 mm²/s
|
DIN appliance plug connection (3P + GND)
|
According to EN 175301-803
|
Mounting position
|
Arbitrarily
|
Appliance plug
|
Rotatable about 3 x 90°
|
Switching hysteresis of the scale end value
|
2 - 10%
|
Repeat accuracy of the scale value
|
1%
|
Degree of protection
|
IP 54
|
Class of insulation
|
I
|
Accuracy class
|
4.0
|
Materials
|
housing: aluminium anodized
|
|
front scale: Polycarbonat
|
Type | Pressure [bar] | Overload max. [bar] | Part No. |
DV7.70.29007
|
70
|
150
|
3646012
|
DV7.100.29010
|
100
|
300
|
3682681
|
DV7.160.29016
|
160
|
300
|
3674639
|
DV7.250.29025
|
250
|
1200
|
3665347
|
DV7.400.29040
|
400
|
1200
|
3661924
|
DV7.600.29060
|
600
|
1200
|
3682754
|
DV7.1000.29100
|
1000
|
1200
|
3658057
|
