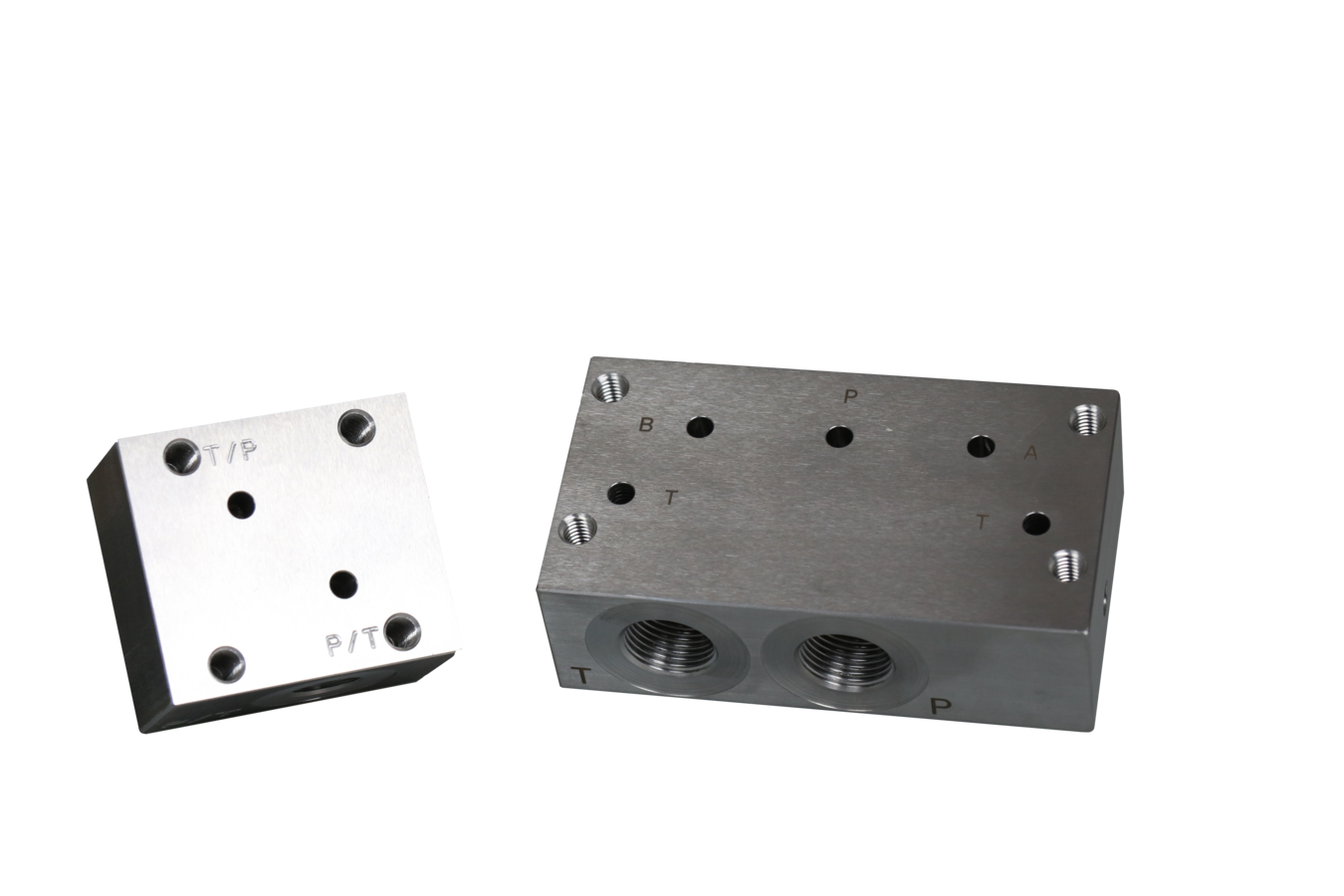

Single subplates EAP-4B

Operating pressure up to 700 bar
Max. flow rate 12 l/Min
Porting NG 4 Bieri standard

Features/Design
Good corrosion resistance
Single mounting of valve series WVH-4B, WVHX-4B and WVH-4B-Bi in pipe systems
Available with 1/4" and 3/8" connection threads

Technical Data

Hydraulic fluid Mineral oil according to DIN 51524 (other fluids on request)
Fluid temperature range – 20 to 80 °C
Ambient temperature range – 30 to 50 °C
Viscosity range 5 bis 400 mm²/s
Porting NG 4 according to Bieri standard
Max. operating pressure 700 bar
Max. flow rate 12 l/min
Filtration (recommendation) According to NAS 1638, class 6 resp. ISO/DIN 4406 class 17/15/12
Weight see table in technical data sheet
Material Corrosion-resistant steel
