Throttle check valves SD700 / SDRV700
The valves of the SD700 and SDRV700 series are very finely adjustable throttle valves, which are offered as screw-in cartridge or also as intermediate plate valve.
|
Max. operating pressure
|
700 bar
|
|
Max. flow rate
|
25 l/min
|
|
Porting
|
NG 6
|
|
Features
|
Advantages
|
|---|
|
The valve setting can be locked by a counter nut
|
Adjustable while under pressure
|
|
Throttle valves for inlet and outlet throttling
|
Bi-directional flow
|
|
Cartridge alone or in manifolds
|
High precission control
|
- Applications, where the moving speed has to be influenced with the valves
- Throttle valves for inlet and outlet throttling
- For applications where the flow shall be throttled in one direction and be unthrottled in the other direction
- Check valves as scre/in cartridge or intermediate plate valve
|
Hydraulic fluid
|
mineral oil according to DIN 51524 (other fluids on request)
|
|
Fluid temperature range
|
-20 to 80 °C
|
|
Ambient temperature range
|
-30 to 50 °C
|
|
Viscosity range
|
5 to 400 mm²/s
|
|
Porting
|
NG 6 according to DIN 24340 / ISO 4401 / CETOP RP 121 H
|
|
Max. operating pressure connection P, A, B
|
700 bar
|
|
Max. operating pressure connection T
|
350 bar
|
|
Max. flow rate
|
25 l/min
|
|
Filtration (recommendation)
|
according to NAS 1638 class 6 resp. ISO/DIN 4406 17/15/12
|
|
Weight
|
see technical data sheet
|
|
Materials
|
steel parts: galvanized, black chromated
cartridge: steel
supporting ring: cast iron
|

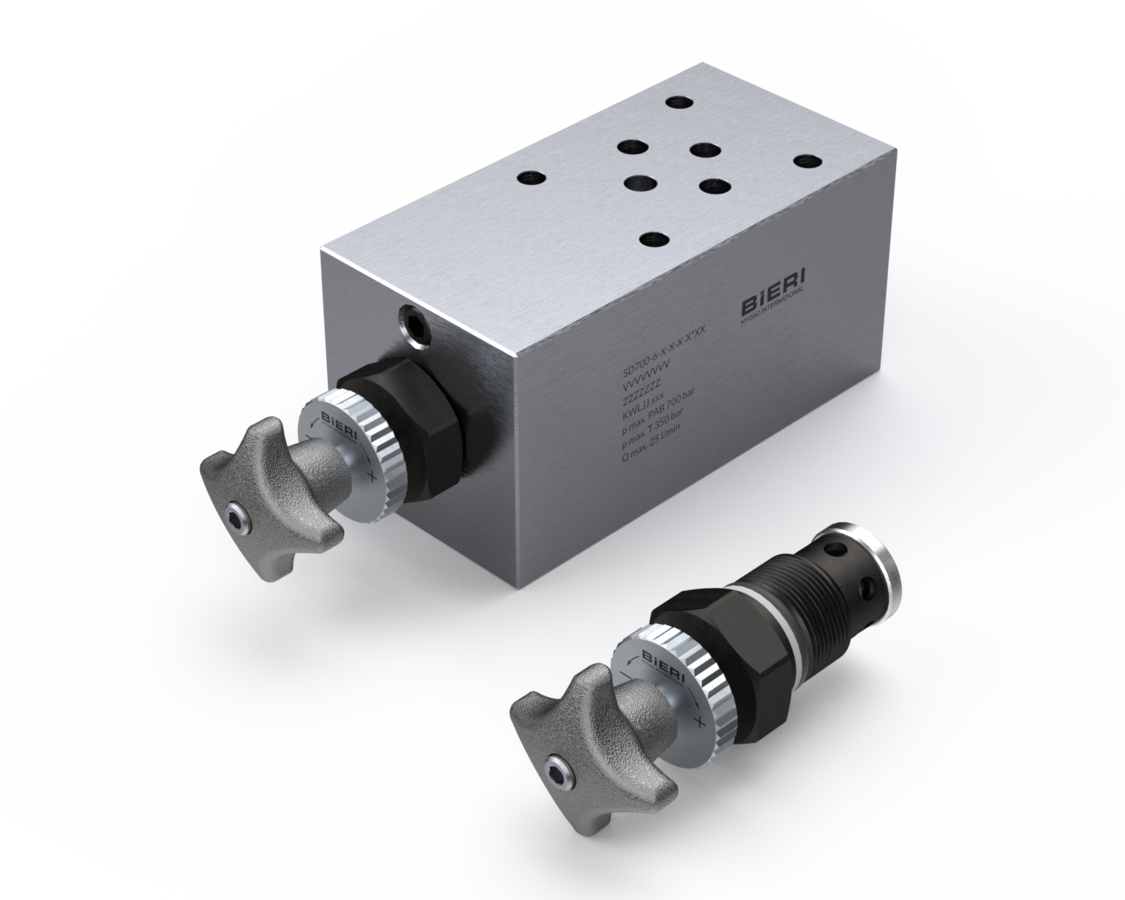

![[Translate to EN:] Drosselrückschlagventil Typ SD700/SDRV700](/fileadmin/_processed_/d/6/csm_SD700-SDRV700_Titelbild_transparent_c8fcafcfcf.png "[Translate to EN:] Drosselrückschlagventil Typ SD700/SDRV700")
