Pilot operated check valves ERV700

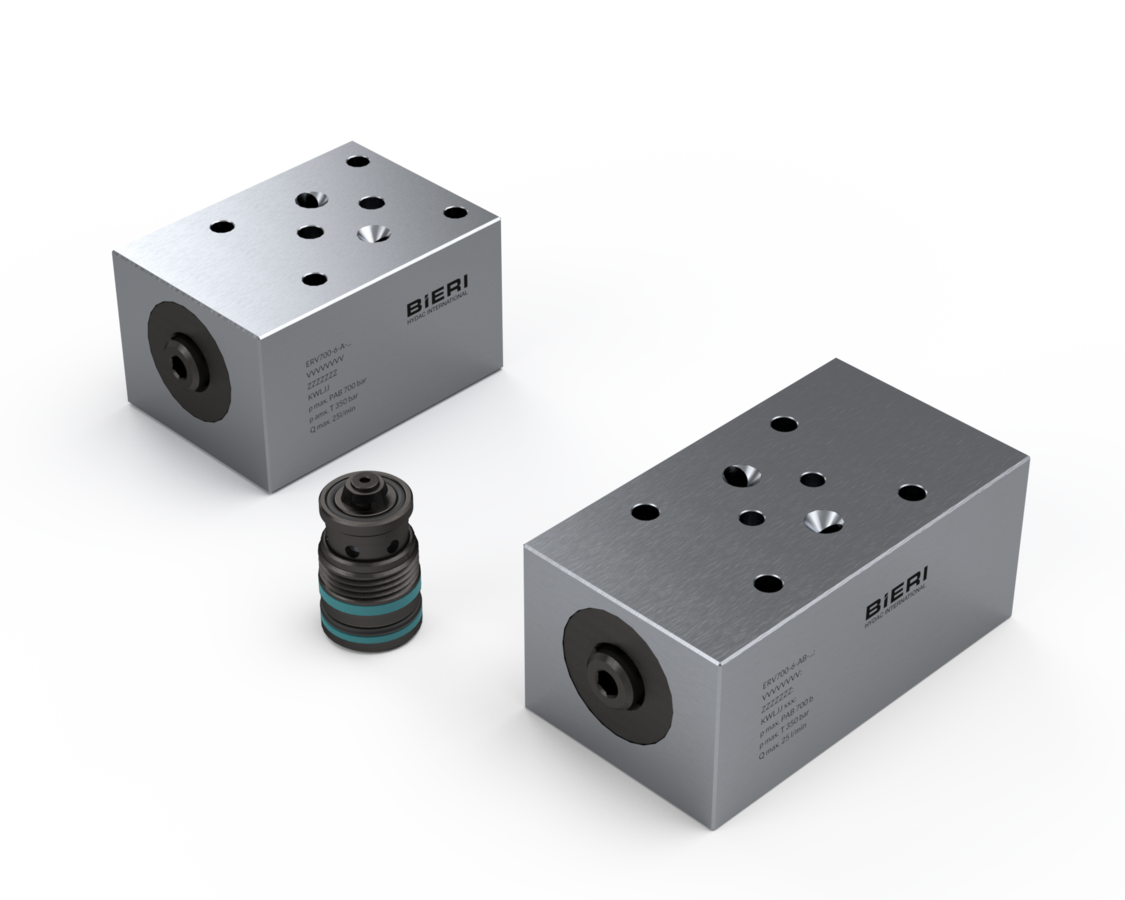

The cartridge design of the pilot operated check valves ERV700 allows a compact integration on cylinders and motors. This assembly offers an enhancement of the tractive strength and also a protection against pipe burst.
|
Operating pressure
|
up to 700 bar
|
|
Max. flow rate
|
25 l/Min
|
|
Porting
|
NG 6
|
|
Features/Design
|
Advantages
|
|---|
|
Ball-seat construction
|
Leakage free
|
|
Porting NG 6 according to CIN 24340
|
Advantageous release function
|
|
External surface corrosion-free
|
Compact design
|
- Compact integration on cylinders and motors
|
Hydraulic fluid
|
Mineral oil according to DIN 51524 (other fluids on request)
|
|
Fluid temperature range
|
– 20 bis 80 °C
|
|
Ambient temperature range
|
– 20 to 50 °C
|
|
Viscosity range
|
5 to 400 mm²/s
|
|
Porting
|
NG 6 according to DIN 24340 / ISO 4401 / CETOP RP 121 H
|
|
Max. operating pressure connection P, A, B
|
700 bar
|
|
Max. pressure admissible connection T
|
350 bar
|
|
Pressure ratio
|
modular subplate (parts in body) pe/p = 1:5.4
cartridge 1:7.2
|
|
Max. flow rate
|
25 l/min
|
|
Back pressure at 25 l/min
|
modular subplate (parts in body) 5 bar
cartridge 30 bar
|
|
Cracking pressure check valve
|
modular subplate (parts in body) ca. 1 bar
cartridge ca. 6 bar
|
|
Filtration (recommendation)
|
according to NAS 1638, class 6 or ISO/DIN 4406 17/15/12
|
|
Weight
|
see dimension drawings
|
|
Material / surface treatment
|
housing: steel, galvanized, chromated
outer parts cartridge: corrosion protection
|
