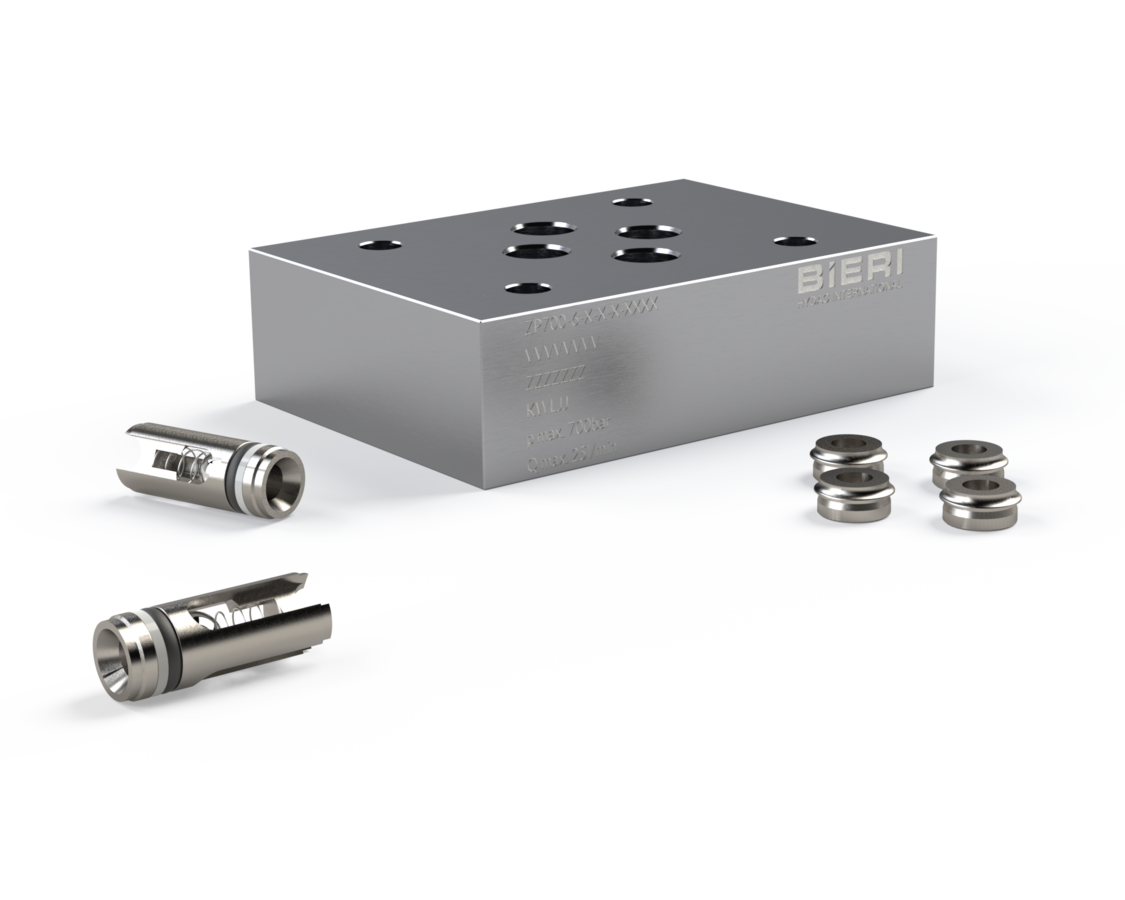

Intermediate plates, accessories ZP700 / BL700 / RV700
intermediate plates for the installation of orifices and check valves, intermediate plates with threaded connections for measuring instruments, check valves and orifices.
- Porting NG 6
- Operating pressure: up to 700 bar
- Flow rate: up to 25 l/min
- Intermediate plates for the installation of orifices and check valves
- Intermediate plates with threaded connections for measuring instruments
- as subplate
- as check valve
- for orifices
- tower-type interlinkage
|
Hydraulic fluid
|
Mineral oil according to DIN 51524 (other fluids on request)
|
|
Fluid temperature range
|
– 20 bis 80 °C
|
|
Ambient temperature range
|
– 30 to 50 °C
|
|
Viscosity range
|
5 to 400 mm²/s
|
|
Porting
|
NG 6 according to DIN 24340 / ISO 4401 / CETOP RP 121 H
|
|
Max. operating pressure connection P, A, B
|
700 bar
|
|
Max. operating pressure connection T
|
350 bar
|
|
Max. flow rate
|
25 l/min
|
|
Filtration (recommendation)
|
According to NAS 1638, class 6 resp. ISO/DIN 4406 17/15/12
|
|
Weight
|
See dimension drawings
|
|
Materials
|
intermediate plate body: steel stainless
orifice: steel
check valve: steel
|
