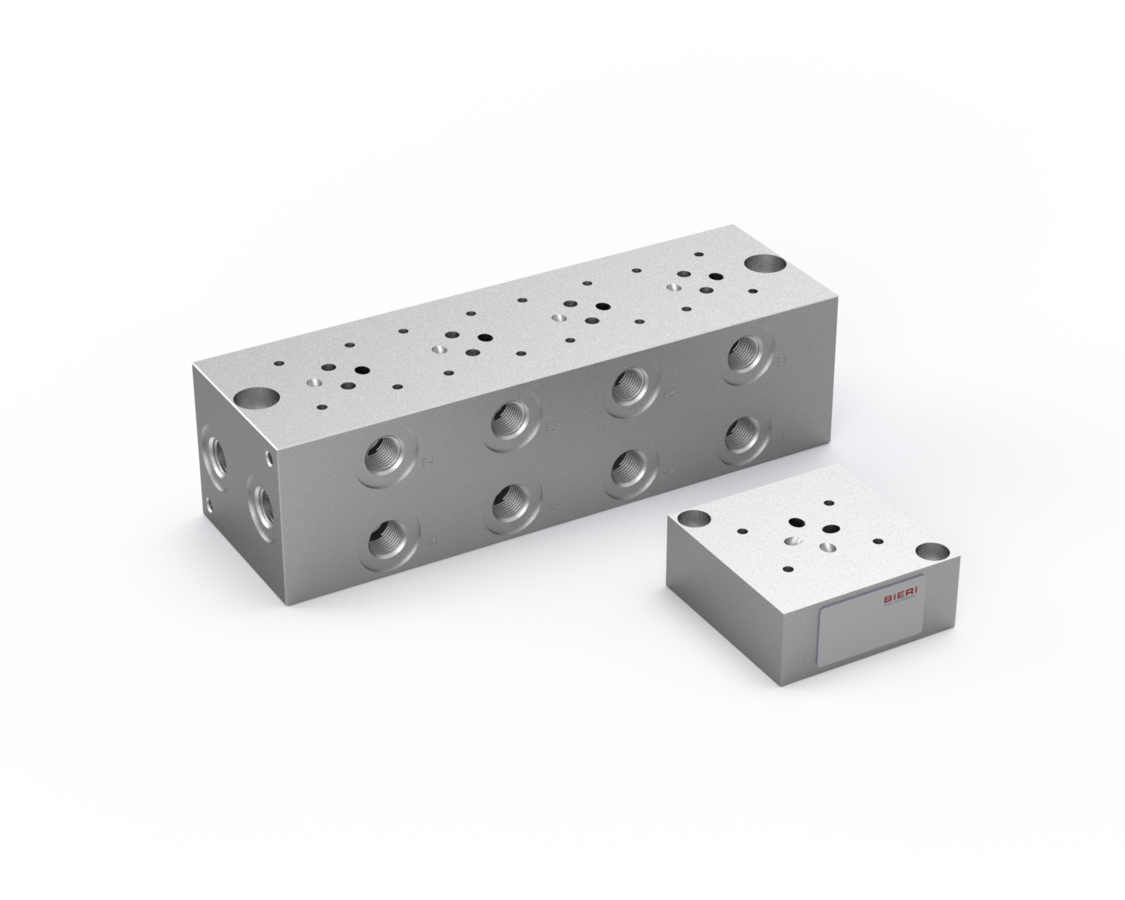

Subplates AP700 / RP700 / EP700

Subplates with side or bottom connection, compact design up to 6 stations

  • Porting NG 6
  • Max. operating pressure connection P, A, B: 700 bar (G3/8"), 500 bar (G1/2")
  • Max. operating pressure connection T: 350 bar
  • Max. flow rate: 25 l/min

Features

  • Subplates (AP) and multi-station subplates (RP) with threaded connections
  • End plate (EP)
  • Compact design up to six stations possible (see product information multi-station subplates page 3)
[Translate to EN:] Anschlussplatten Typ AP700/RP700/EP700

Applications

  • Basic elements for the build up of hydraulic circuits

Design

  • All control lines with common pressure (P) and common tank connection (T)
  • User ports (A and B) are situated on the side of the plate

Technical data

Hydraulic fluid mineral oil according to DIN 51524 (other fluids on request)
Fluid temperature range – 20 bis 80 °C
Ambient temperature range – 30 to 50 °C
Viscosity range 5 to 400 mm²/s
Porting NG 6 according to DIN 24340 / ISO 4401 / CETOP RP 121 H
Max. operating pressure connection P, A, B 700 bar with G3/8" connection thread
500 bar with G1/2" connection thread
Max. operating pressure connection T 350 bar
Max. flow rate 25 l/min
Filtration (recommendation) according to NAS 1638 class 6 resp. ISO/DIN 4406 17/15/12
Weight see technical data sheet
Material steel, stainless, galvanized
