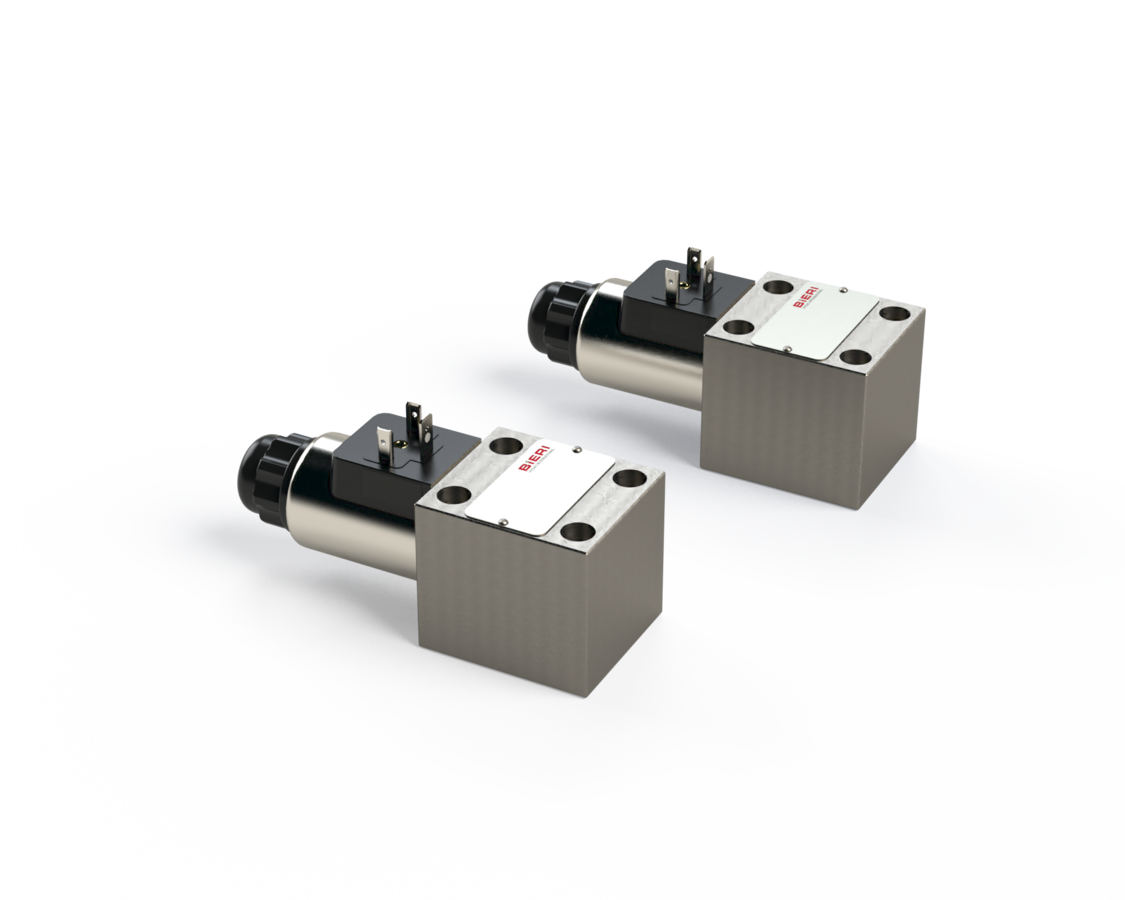

Directional poppet valves WVH-6I
BIERI directional poppet valves of the WVH-6I series are direct controlled, poppet tight solenoid valves suitable for a pressure up to 700 bar and flow rates up to 25 l/min. In addition to the compact and lightweight design, they offer outstanding tightness, stainless components and a turnable plug-in coil.
|
Max. operating pressure
|
700 bar
|
|
Max. flow rate
|
25 l/min
|
|
Porting
|
NG 6 according to DIN 24340 /ISO 4401 /CETOP RP 121 H
|
|
Features
|
Advantages
|
|---|
|
Available as 2/2 and 3/2 directional poppet valve with solenoid actuation
|
Poppet tight (bidirectional)
|
|
Directly operated
|
High operational safety and relieble switching
|
|
360° turnable and exchangeable plug-in coil
|
High corrosion resistance
|
|
Hidden manual override
|
High duty cycles and long lifetime
|
|
Pressure compensated design of hardened and specially grinded valve cones
|
Replacement of coils without opening of the pressure tight spaces
|
- Controlling of cylinders in higher pressure ranges as full replacement for spool valve technology (especially for poppet tight holding and bending)
- Clamping technology & jig construction
- Machine tools - auxiliary functions
- Forming technology - clamping
- Presses, test benches and systems
- Lifting and transport systems
- Hydraulic tools
- Patented valve-design
- Pressure compensated design of hardened and specially grinded valve
cones - Strong return springs
- Hidden manual override
- Available as 2/2 and 3/2 directional poppet valves with solenoid actuatation
- 360° turnable and exchangeable plug-in coil
|
Hydraulic fluid
|
Mineral oil according to DIN 51524 (other fluids on request)
|
|
Fluid temperature range
|
-20 to 80 °C
|
|
Ambient temperature range
|
-30 to 50 °C
|
|
Viscosity range
|
5 to 400 mm²/s
|
|
Porting
|
NG 6
|
|
Max. operating pressure connection P, A, B
|
700 bar
|
|
Max. operating pressure connection T
|
700 bar
|
|
Max. flow rate
|
25 l/min
|
|
Filtration (recommendation)
|
According to NAS 1638 class 6 or ISO/DIN 4406 17/15/12
|
|
Duty cycle DC
|
100 %
|
|
Solenoid voltage (nominal power)
|
12 VDC (26.7 W), 24 VDC (27.2 W), 110 VAC (25 W), 230 VAC (25 W)
|
|
Voltage tolerance
|
+/– 10 %
|
|
Switching time
|
See technical data sheet
|
|
Degree of protection
|
IP 65 according to EN 60529 /DIN 40050 (or according coil choice)
|
|
Service life
|
B10: 1 million according to ISO 19973
|
|
Weight
|
See technical data sheet
|
|
Material/Surface finish
|
Solenoid coil: ZnNi-plated (1000 h salt spray test)
|
|
|
Valve body: 1.4104 / X14CrMoS17
|
