Pressure reducing valves DM700

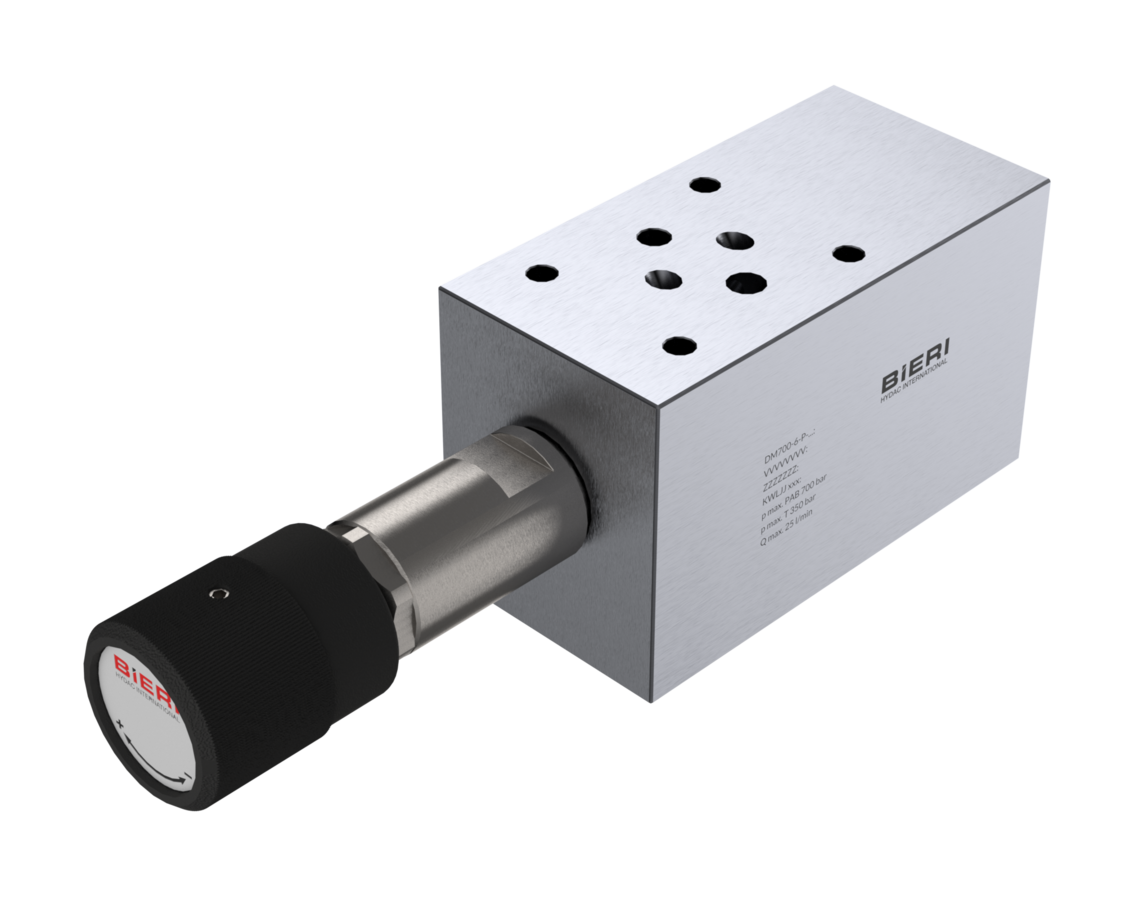

The pressure reducing valve DM700 is a direct operated valve with a poppet tight design.

Operating pressure up to 700 bar
Max. flow rate 25 l/Min
Porting NG 6 Cartridge

Downloads

[Translate to EN:] Druckminderventil Typ DM700
Features Advantages
Available as 2/2 or 3/2 directional poppet cardridges with solenoid actuation Poppet tight (bidirectional)
Directly operated High operational safety and relieble switching
Hidden manual override High duty cycles and long lifetime
360° turnable and exchangeable plug-in coil High corrosion resistance
Patented valve design Replacement of coils without opening of the pressure tight spaces
Pressure compensated design of hardened and specially grinded valve cones All connections can be loaded to the maximum operating pressure

Applications

  • Portable power units
  • Control of cylinders as superior and space saving alternatives
    to spool valves which require additional leakage free shutoff valves
  • Forming technology - clamping
  • Presses, test benches and systems
  • Lifting and transport systems
  • Hydraulic tools
  • Accumulator charching systems
  • Seat-tight pilot control of passive and/or active logic valves

Design

  • Pressure compensated design of hardened and specially grinded valve cones
  • Available as 2/2 or 3/2 directional poppet valve cartridges with solenoid actuation
  • Strong return springs
  • 360° turnable and exchangeable plug-in-coil

Technical data

Hydraulic fluid mineral oil according to DIN 51524 (other fluids on request)
Fluid temperature range – 20 bis 80 °C
Ambient temperature range – 30 to 50 °C
Viscosity range 5 to 400 mm²/s
Porting NG 6 according to DIN 24340 / ISO 4401 / CETOP RP 121 H
Max. operating pressure connection P, A, B 700 bar
Max. operating pressure connection T 350 bar
Pressure setting connection A 70 bar – 600 bar
Hysteresis up to 20 % of reduced pressure
Max. pressure limitation in reduced pressure side 15 % over reduced pressure
Max. flow rate 25 l/min
Filtration (recommendation) according to NAS 1638 class 6 resp. ISO/DIN 4406 17/15/12
Weight 2.3 kg
Material valve body: steel, galvanized, black chromated
cartridge body: stainless steel
adjusting knob: plastic
