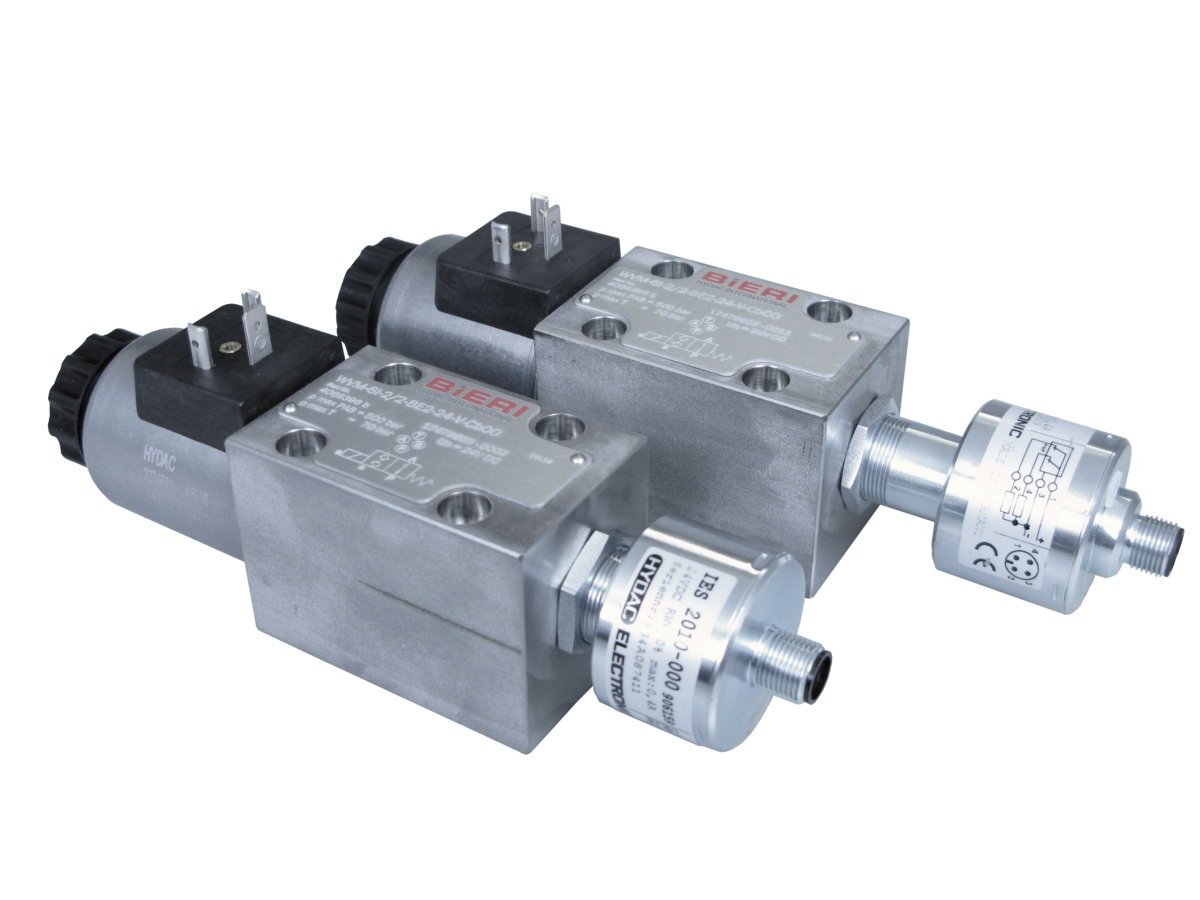

The BIERI series WVM-6I-R position monitored poppet valves consists of directly controlled, poppet tight solenoid directional valves, suitable for high load cycles. Due to the position monitoring, a higher diagnostic coverage (DC) of the overall system can be achieved, which enables the use in control systems of higher categories.
Operating pressure | up to 500 bar |
Max. flow rate | 12 l/Min |
Porting | NG 6 ISO |
Directional poppet valves WVM-6I
with position monitoring
Due to the position monitoring, a higher diagnostic coverage (DC) of the overall system can be achieved...
Directional poppet valves WVM-6I-OF
with locking mechanism
Thanks to the patented locking mechanism, these valves offer secure positioning when de-energised.
Features | Advantages |
---|---|
Direct operated, solenoid actuated | High operational safety and reliable switching |
Poppet tight | High duty cycles and long lifetime |
Position monitored with dirt resistent monitoring concept | High corrosion resistance |
An overlap area on the poppet ensures that the possible flow in the switching points near the seats is limited to a minimum | Non-contact sensors for the diagnosis in safety-relevants parts of electronic control systems |
Positive switching overlap (3/2 valves) | Condition recording in the context of Industry 4.0 |
Hydraulic fluid | Mineral oil according to DIN 51524 (other fluids on request) |
Fluid temperature range | -20 to 80°C |
Ambient temperature range | -30 to 50°C |
Viscosity range | 5 to 400 mm²/s |
Porting | NG 6 according to DIN 24340 / ISO 4401 / CETOP RP 121 H |
Max. operating pressure connection P, A, B | 500 bar |
Max. operating pressure connection T | 70 bar (WMV-6I-3/2-D = 500 bar) |
Max. flow rate | 12 l/min |
Filtration (recommendation) | According to NAS 1638, class 6 resp. ISO/DIN 4406 Klasse 17/15/12 |
Duty cycle DC | 100 % |
Solenoid voltage (nominal power) | 24 VDC (30 W) |
Voltage tolerance | +/– 10 % |
Switching time | 40 – 110 ms |
Degree of protection | IP 65 according to EN 60529 / DIN 40050 (or according coil choice) |
Weight | 1.8 kg with solenoid / 1.5 kg without solenoid |
Material |
Valve body: Corrosion resistant steel Solenoid coil: ZnNi-plated (1000 h salt spray test) |
